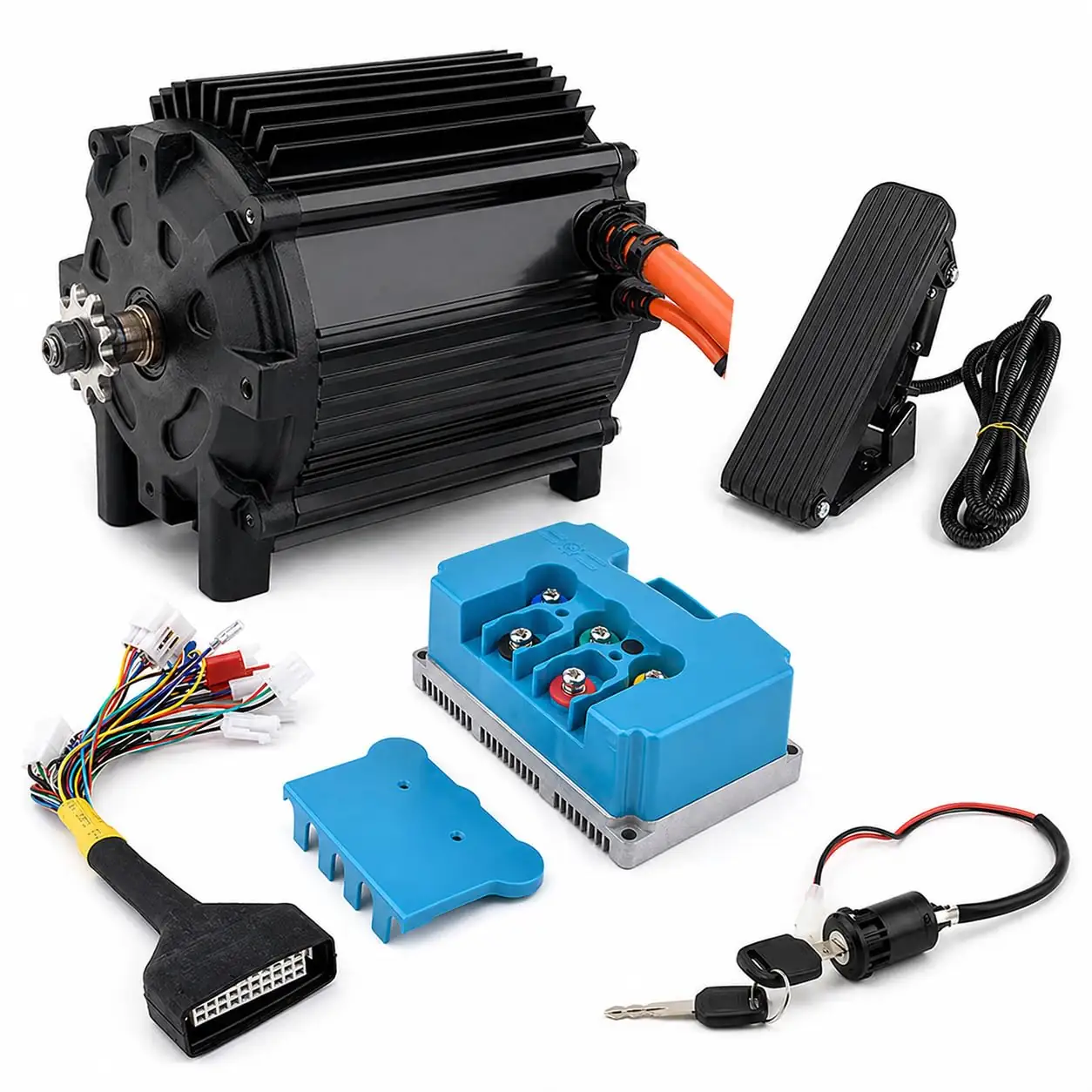

72V 5000W Motor Kit Fardriver Controller Electric Brushless DC Motor Kit

Attributes

Description

Quantity: 1, MOTOR PERFORMANCE This 72V brushless DC motor delivers 5000W rated power with a peak output of 10KW, providing robust power for various models. Operating at 6800rpm rated speed and reaching up to 8000rpm no-load speed, it meets high-speed requirements. With 8.5N.m rated torque and 35N.m peak torque, it ensures reliable power transmission. The specially designed V-shaped magnet rotor and 5 pairs of magnetic poles configuration enhance operational stability and efficiency. SMART PROTECTION Equipped with KTY84-130 temperature sensor and Hall sensors for real-time sensing. Featuring F-class insulation (155 resistance) and IP54 protection rating, it effectively resists dust and water splashes. The aluminum housing with external heat sink, combined with full copper wire, delivers excellent heat dissipation and temperature resistance. Hall sensors are conveniently located in the removable back cover for easy maintenance, Please do not remove the screws. INTELLIGENT CONTROLLER: The 72v 5000w motor kit includes a programmable sine wave controller, which can be flexibly adjusted with personalized parameters. Controller Parameters: Current: 100A, Protect Phase Current: 300A, Rated Voltage:48-72V, Adapter Motor:3-5KW, Net Weight:1.9KG, IP Class:IP67. EASY INSTALLATION The 72V 5000W brushless motor features screw holes on the bottom, front, and rear for flexible installation. This electric motor kit is compatible with go karts, ATVs, electric motorcycles, e-scooters, and off-road models. Brushless mid-drive motor for Razor MX500 MX650 SX500 RSF650 Electric Dirt Bike Upgrade Kit and more. Please note that the 72 volt motor surface may become hot during operation, avoid direct contact to prevent burns KIT INCLUDES: Electric dirt bike motor kit includes 72V 5000W temperature sensing motor, brushless programmable controller, ignition key, foot pedal throttle. If you have any questions about the product, please reach out to us through Amazon. We are here to help. Lot Number: 19990882, Brand: Chokayaky,
