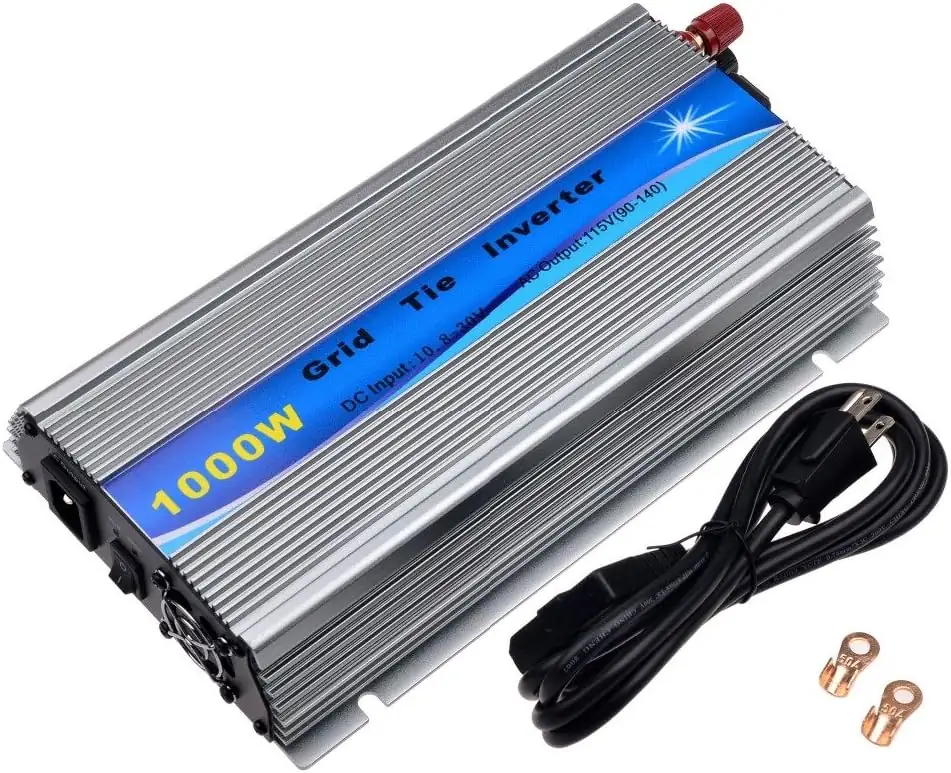

Y&H 1000W Grid-Tie Inverter, MPPT, Pure Sine Wave, DC15-28V In, AC90-140V Out, 12V Panels

Attributes

Description

Quantity: 1, Grid Tie Inverter MPPT Range 15.5-23V DO NOT use solar controller load ports to connect to the inverter.This is On Grid. The AC output needs to be connected to the grid. Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency Red / green lights flash alternating. This is the solar panel power or voltage is too low 200W-1000W Solar Panel:Vmp: 18-21V, Voc: 20-24V Please do not use other voltage input, for example: (10.8V-15V)and (25-30V) The DC positive and negative connections are reversed, and the inverter Led will not light up. Micro Grid Tie Inverter Doesn't work with 12V battery Each time you move the inverter, tighten the DC connection terminals. Avoid short circuit of DC terminal due to loose connection Micro Inverter Max Power Point Tracking and Stackable,Island Protection. If the DC connection is loose and causes a short circuit, then smoke may be emitted.The inverter adopts aluminum alloy casing, so there is no fire. Please note: Do not use it together with a bidirectional meter in the local power grid. This is because the excess power from the inverter will be fed back into the grid, resulting in increased electricity costs. For a bidirectional power grid, we recommend using our SUN-Inverter series. Lot Number: 19989622, Brand: Y&H,
